Product details

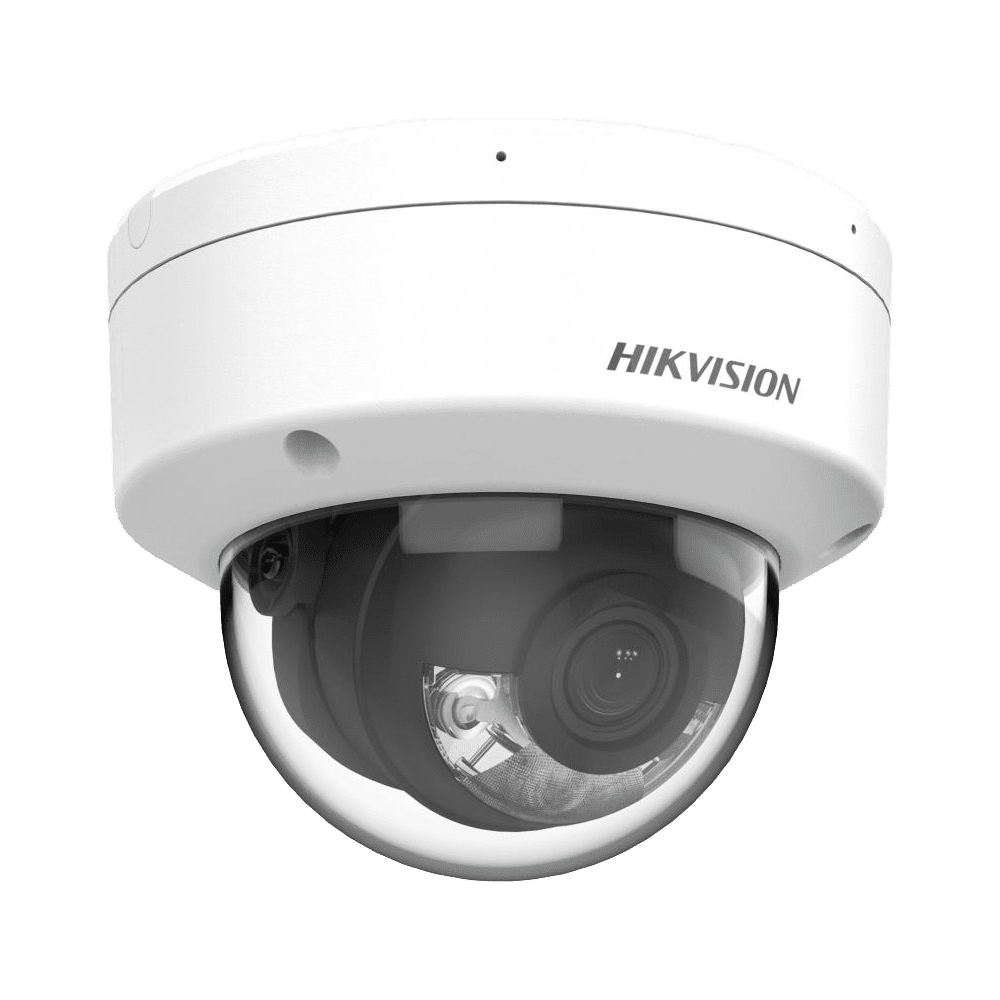

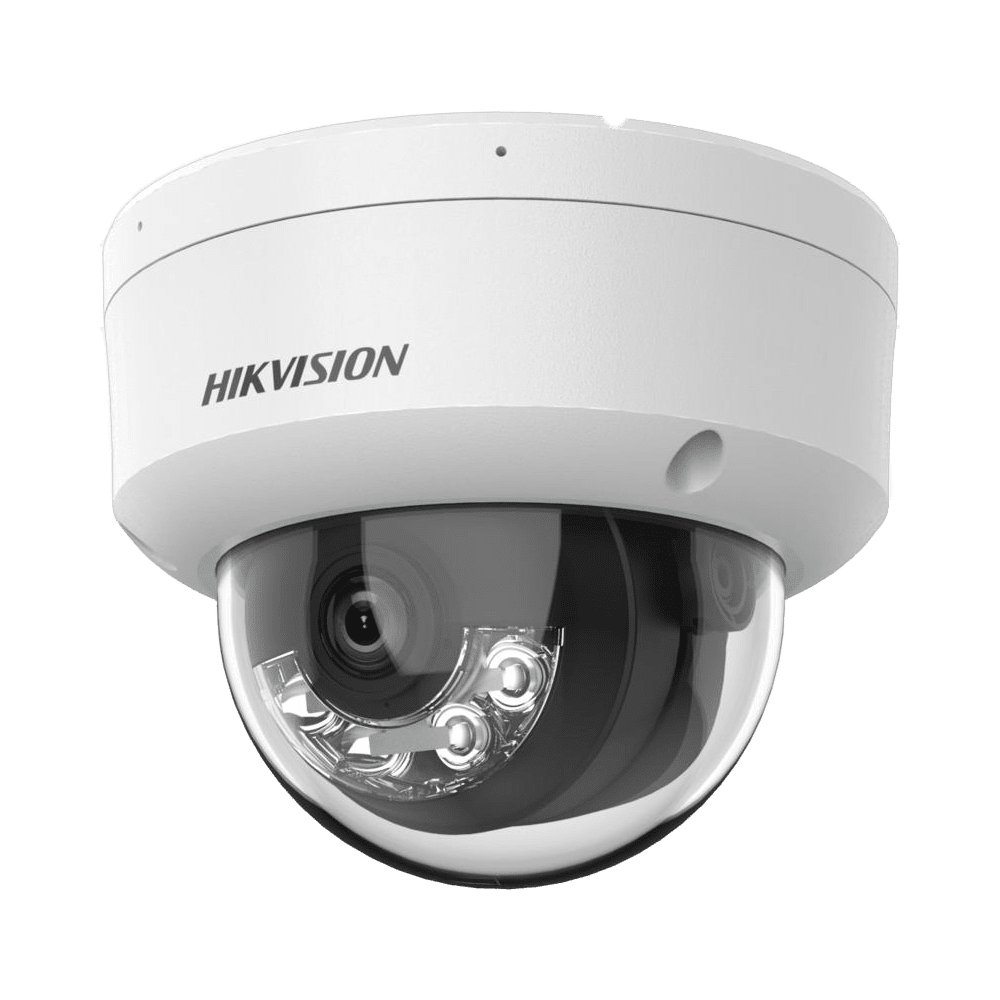

Hikvision DS-2CD1123G3-LIU 2MP ColorVu Fixed Dome IP Camera in Sri Lanka
| Camera | |
| Image Sensor | 1/2.9″ Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° |
| Lens Mount | M12 |
| Focus | NA |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Depth of Field | 2.8 mm: 1.1 m to ∞ 4 mm: 1.2 m to ∞ |
| DORI | |
| DORI | 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m |
| Illuminator | |
| Supplement Light Type | IR,White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 24 fps (640 × 480, 640 × 360) |
| Third Stream | NA |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile,Main Profile,High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR,VBR |
| Scalable Video Coding (SVC) | YES |
| Region of Interest (ROI) | 1 fixed regions for each stream |
| Target Cropping | NO |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | -U：8 kHz/16 kHz |
| Environment Noise Filtering | -U: Yes |
| Network | |
| Protocols | DHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP ,RTP,DD NS,TCP/IP,UPnP,NTP,SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ISAPI,EZVIZ,ONVIF,ISUP,SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Network Storage | NO |
| Client | iVMS-4200,Hik-Connect |
| Web Browser | Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | NA |
| Built-in Microphone | Yes,1 built-in microphone |
| Built-in Speaker | -LIU(F)：NA |
| Audio | NA |
| Alarm | NA |
| Reset Key | NA |
| Event | |
| Basic Event | Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception |
| Smart Event | NO |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture |
| Deep Learning Function | |
| Perimeter Protection | NO |
| Face Capture | NO |
| General | |
| Power | 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Material | Base: metal, cover: plastic |
| Dimension | Ø121.5 mm × 97.6 mm (Ø4.78″ × 3.84″) |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″) |
| Weight | Approx. 480 g (1.06 lb.) |
| With Package Weight | -LIU(F): Approx. 635 g (1.40 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German |
| General Function | Heartbeat,mirror,password reset via email,password protection,anti -banding |
| Flashing Light | NA |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Hikvision DS-2CD1123G3-LIU
DS-2CD1123G3-LIU price Sri Lanka
Hikvision 2MP IP camera Sri Lanka
Hikvision ColorVu camera Sri Lanka
Hikvision dome camera Sri Lanka
2MP CCTV camera Sri Lanka
Hikvision IP camera Colombo
Hikvision CCTV camera price Sri Lanka
ColorVu CCTV camera Sri Lanka, outdoor IP camera Sri Lanka, Hikvision security camera, Hikvision dome IP camera
1. What is the resolution of the Hikvision DS-2CD1123G3-LIU?
The Hikvision DS-2CD1123G3-LIU is a 2MP Full HD network camera designed for clear security video monitoring.
2. Does the DS-2CD1123G3-LIU support color night vision?
Yes. It uses ColorVu technology and supplemental lighting to provide better color images in low-light conditions.
3. Is the Hikvision DS-2CD1123G3-LIU suitable for outdoor use?
Yes. Its IP67-rated protection makes it suitable for outdoor security installations when properly installed.
4. Does this camera have a built-in microphone?
Yes, the DS-2CD1123G3-LIU features a built-in microphone for audio capture.
5. Can I connect this camera to a Hikvision NVR?
Yes. It can be connected to a compatible Hikvision NVR through a network connection.
6. Where can I use the DS-2CD1123G3-LIU?
It is suitable for homes, offices, shops, hotels, warehouses, restaurants, and commercial properties in Sri Lanka.
7. Is the Hikvision DS-2CD1123G3-LIU a dome camera?
Yes. It is a fixed dome-style IP security camera, making it suitable for both indoor and outdoor surveillance.
